aSLIDE

aSLIDE sliding doors

The excellent design of aSLIDE sliding doors allows you to build doors with spectacular dimensions. The whole is complemented by an almost invisible threshold that eliminates the division into external and internal space. In order to increase the visual values ​​and durability of the outer surface, it is possible to make HS doors in the innovative acrylcolor technology.

More light than ever.

The design version is addressed to people who appreciate natural lighting in the interior. In this solution, the standard leaf in the fixed part is replaced with a glazed profile, the width of the face of which is reduced by more than 50% compared to the normal leaf.

Advantages:

  • perfect thermal insulation,
  • aSLIDE structure is adapted to the assembly of modern triple-glazed units with a thickness of 52 mm (54 mm with the use of STV®),
  • modern design - a narrow wing and an innovative structure of the fixed part create an aesthetic whole and allow for effective lighting of the interior,
  • precise details - the design, thought out to the smallest detail, also includes excellent thermal insulation, easy processing and innovative technical solutions,
  • it is possible to finish in the proven acrylcolor technology, which gives a beautiful appearance and guarantees durability of use,
  • variety - 2 construction versions (classic and design), various opening schemes,
  • a wide range of colors create great opportunities in creating your dream door,
  • protection of natural resources - profile core made of recycled material.

Installation depth 190 mm

Number of chambers 6

Glazing package Ug=0,5

Permeation coefficient Uw=0,78*

Fittings GU

* for a reference window with dimensions of 3500x2300mm, with a triple-glazed unit Ug = 0.5, a warm Chromatec Ultra spacer and 1.5 mm closed steel.

aSLIDE STANDARD

  • white color - RAL9016,
  • the basic color of seals, even for white windows, is black,
  • closed steel in the frame,
  • aSLIDE fitting from GU brand,
  • the standard Comfort threshold in the aSLIDE door, and the zero threshold as an option, at an extra charge,
  • glazing beads always straight with a bend of almost 90 degrees,
  • handles with straight lines, stylistically referring to the glazing beads,
  • warm black inter-pane frames,
  • ecological core,
  • welding of V-type corners.

.
Other equipment standards and ordering remain unchanged.

ASLIDE sliding doors can be constructed with two types of threshold *:

Threshold COMFORT

The 50 mm high threshold guarantees comfortable operation and proper operation of the patio door for many years. Provides effective thermal insulation and complies with the DIN 18040 standard for building without architectural barriers. The outside is protected by an aluminum profile. A foil preventing excessive moisture is directly connected to the threshold.

Threshold 0 mm

- thanks to the unique structure, no obstacle is created between the apartment and the terrace. As a result, the floor in the house and the floor outside are at the same level, which is a great convenience for the disabled, and the risk of tripping over the protruding elements of the threshold disappears. The threshold flush with the floor is almost completely flat - only the guide of the sliding sash, approx. 5 mm high, is visible.

* selection of extensions depending on the assembly requirements

AVAILABLE COLOURS:

BEST VENEERS

The colors from the BEST group guarantee a quick delivery date and a preferential price. The following colors are available:

RICH COLOUR PALETTE

Customers can also choose a colour from a wide range of veneers, in which they will surely find the one that perfectly matches their project.

In the aMORE system, you can also choose the colors from the offer:

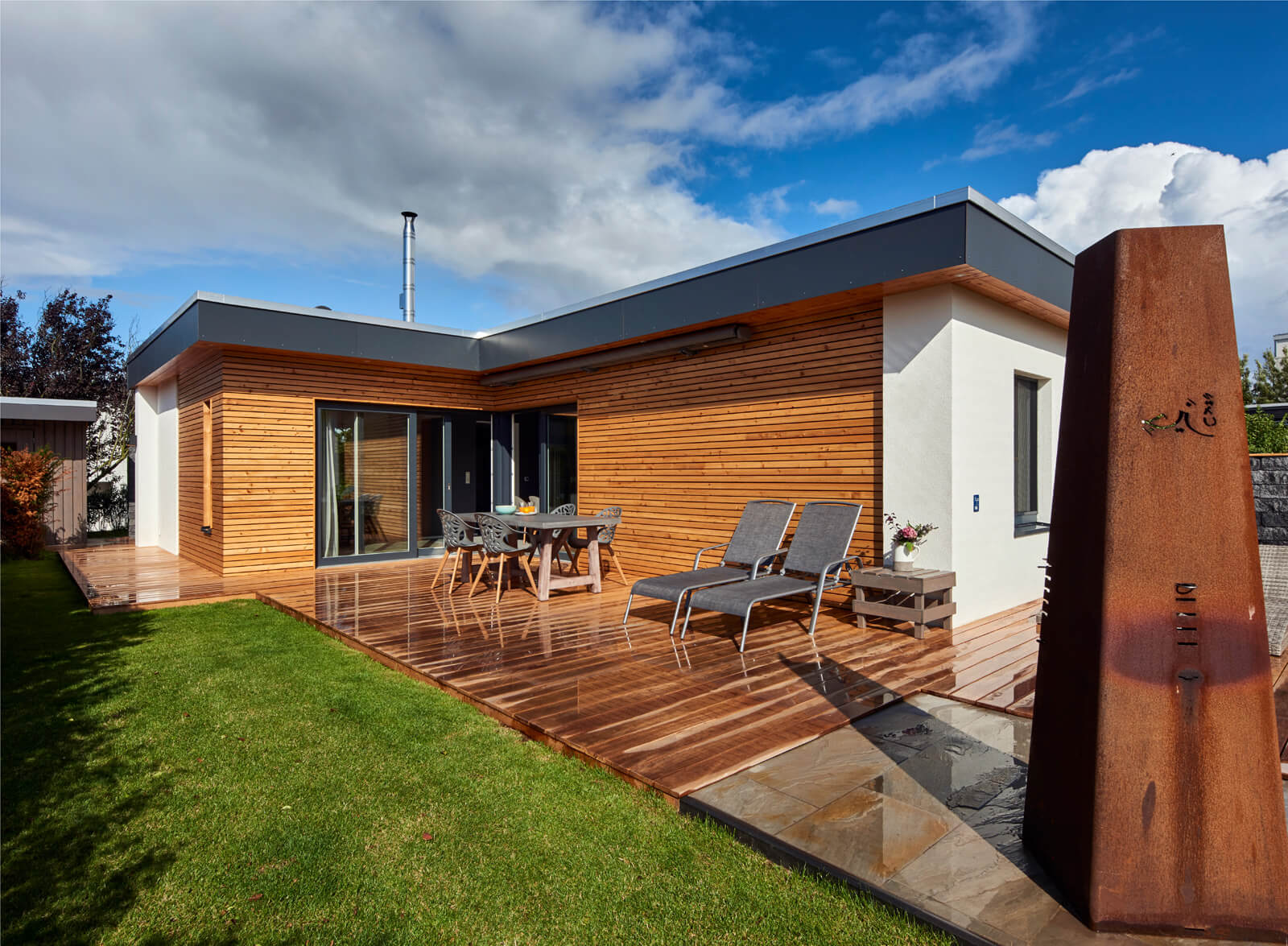

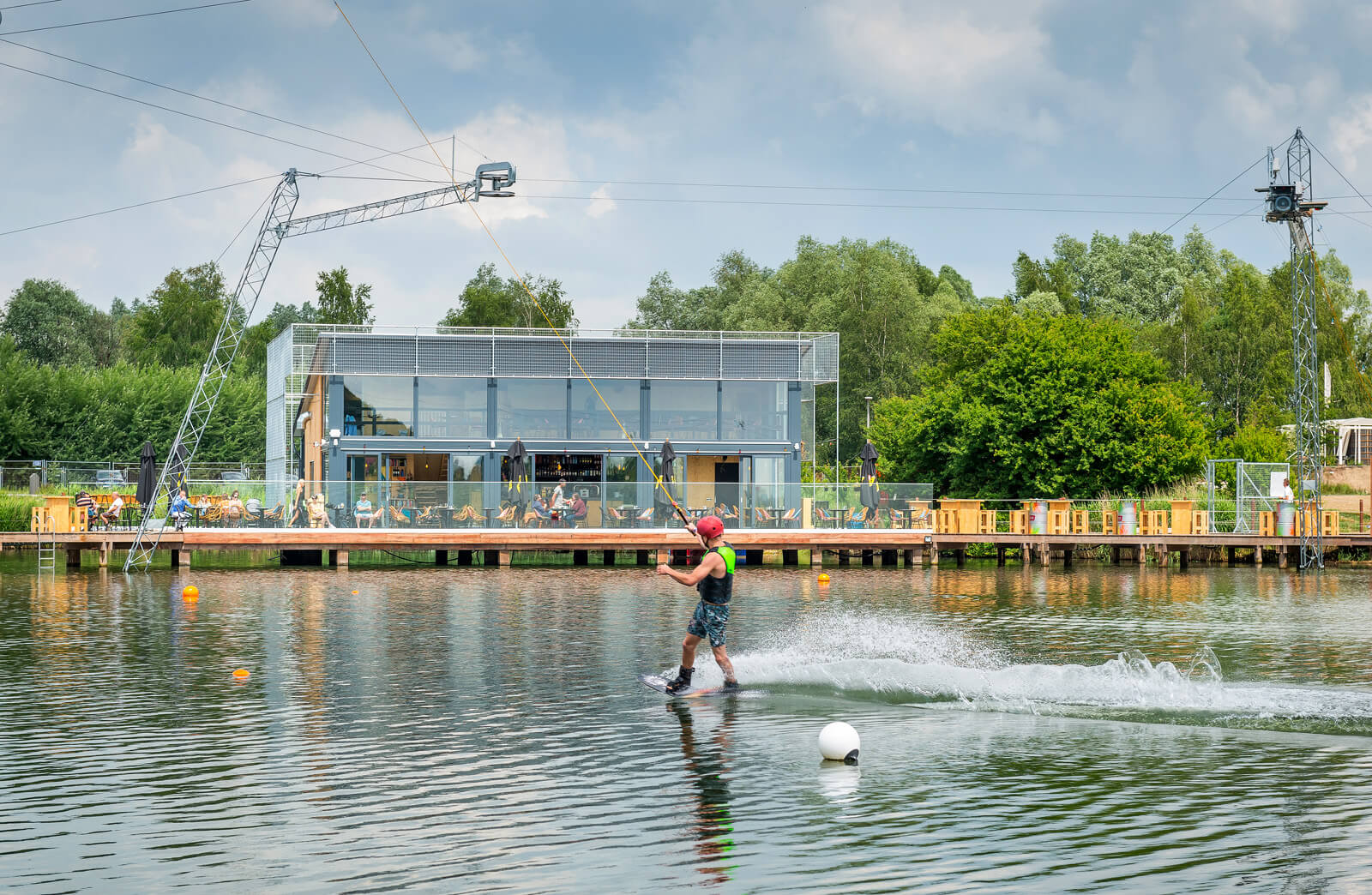

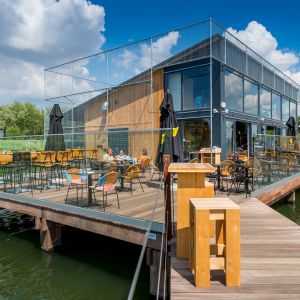

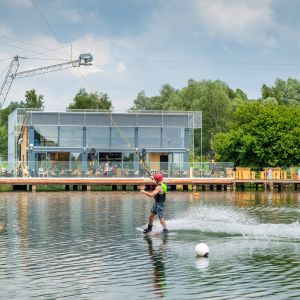

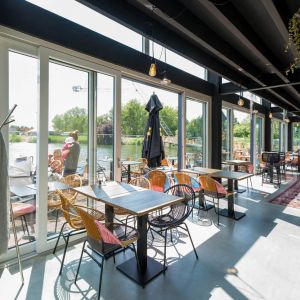

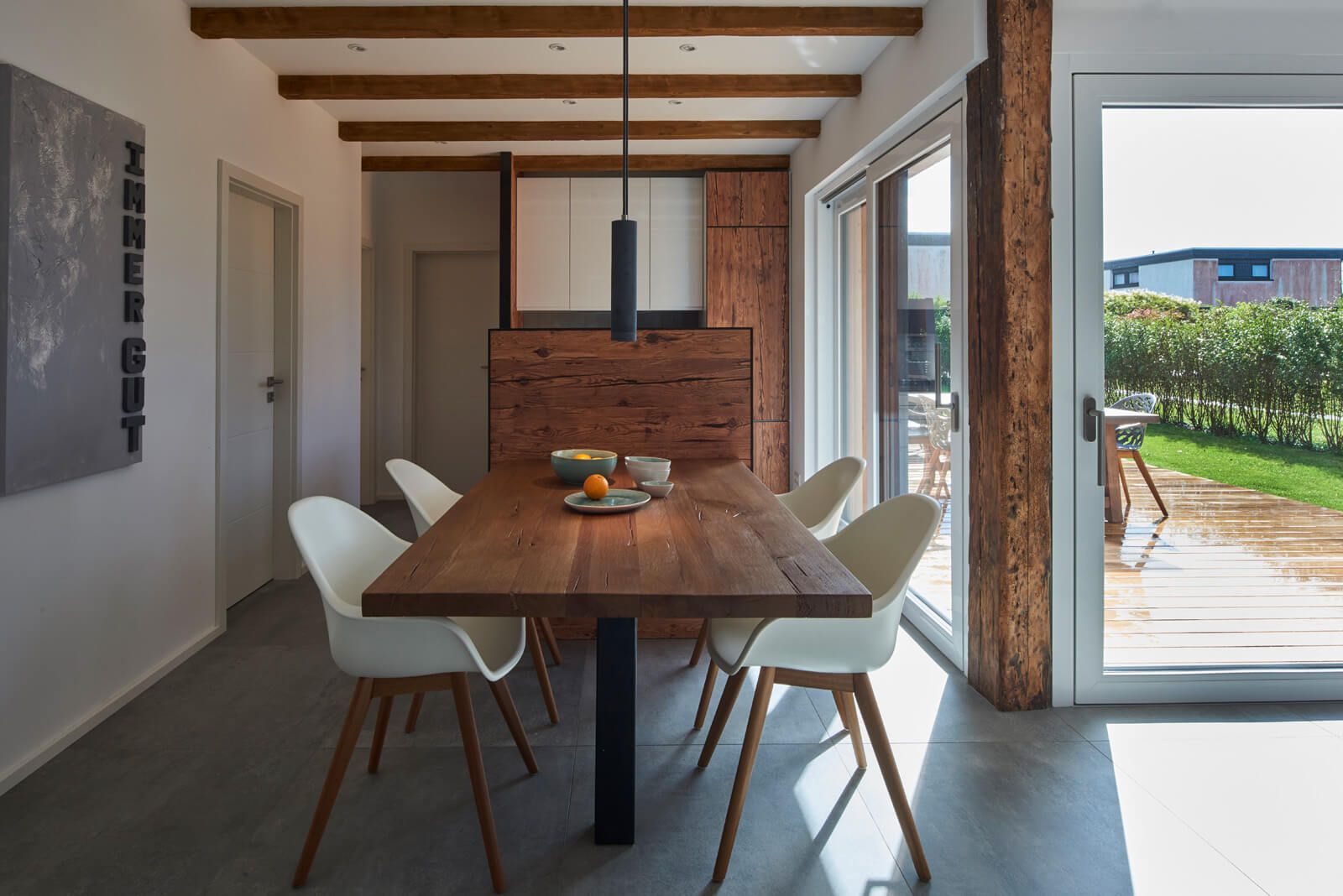

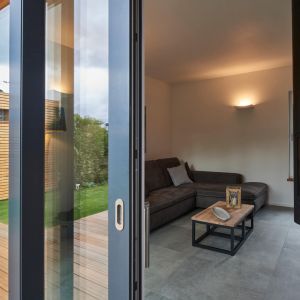

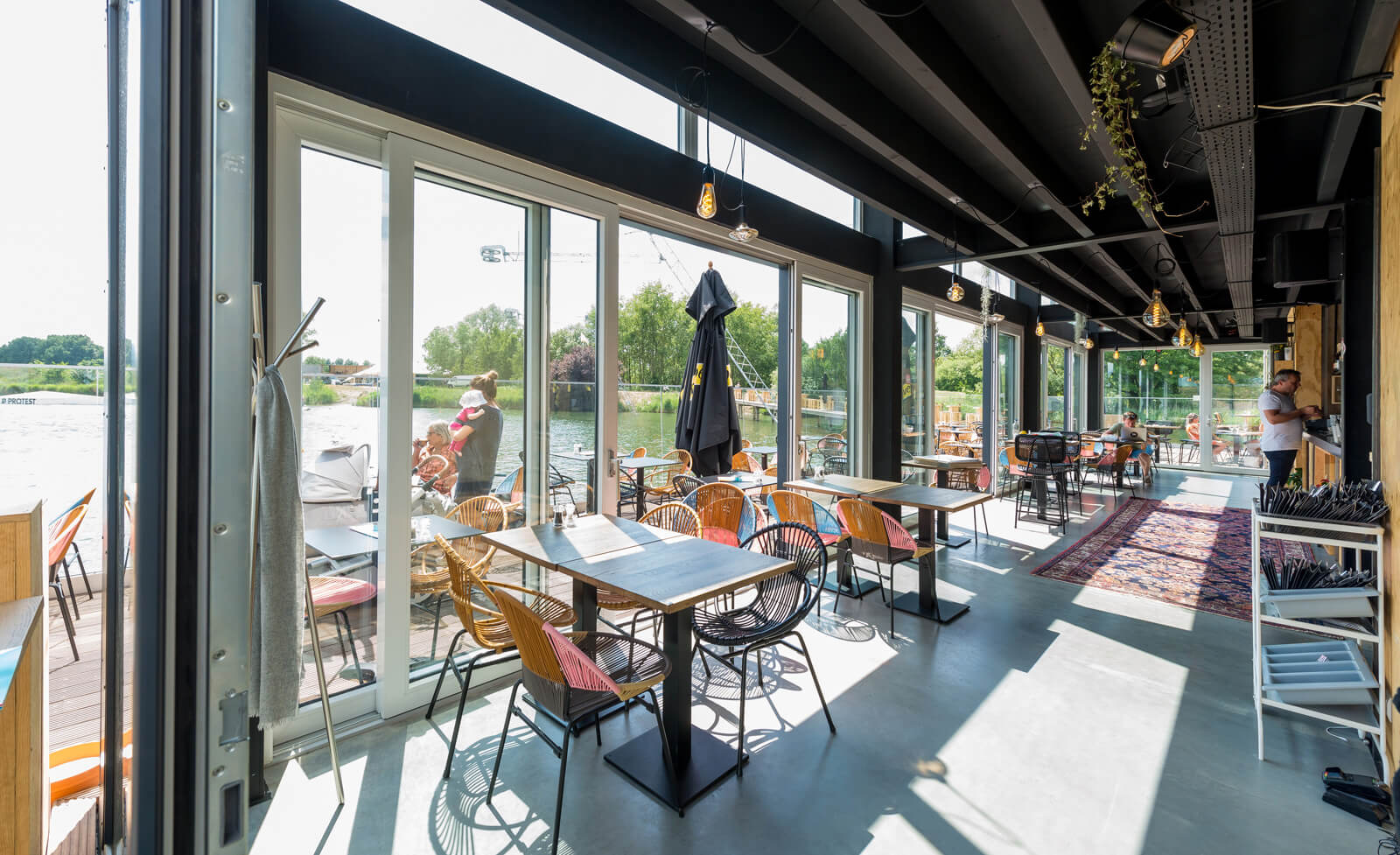

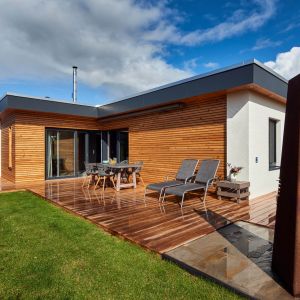

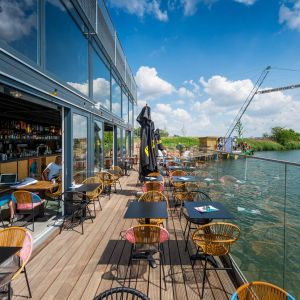

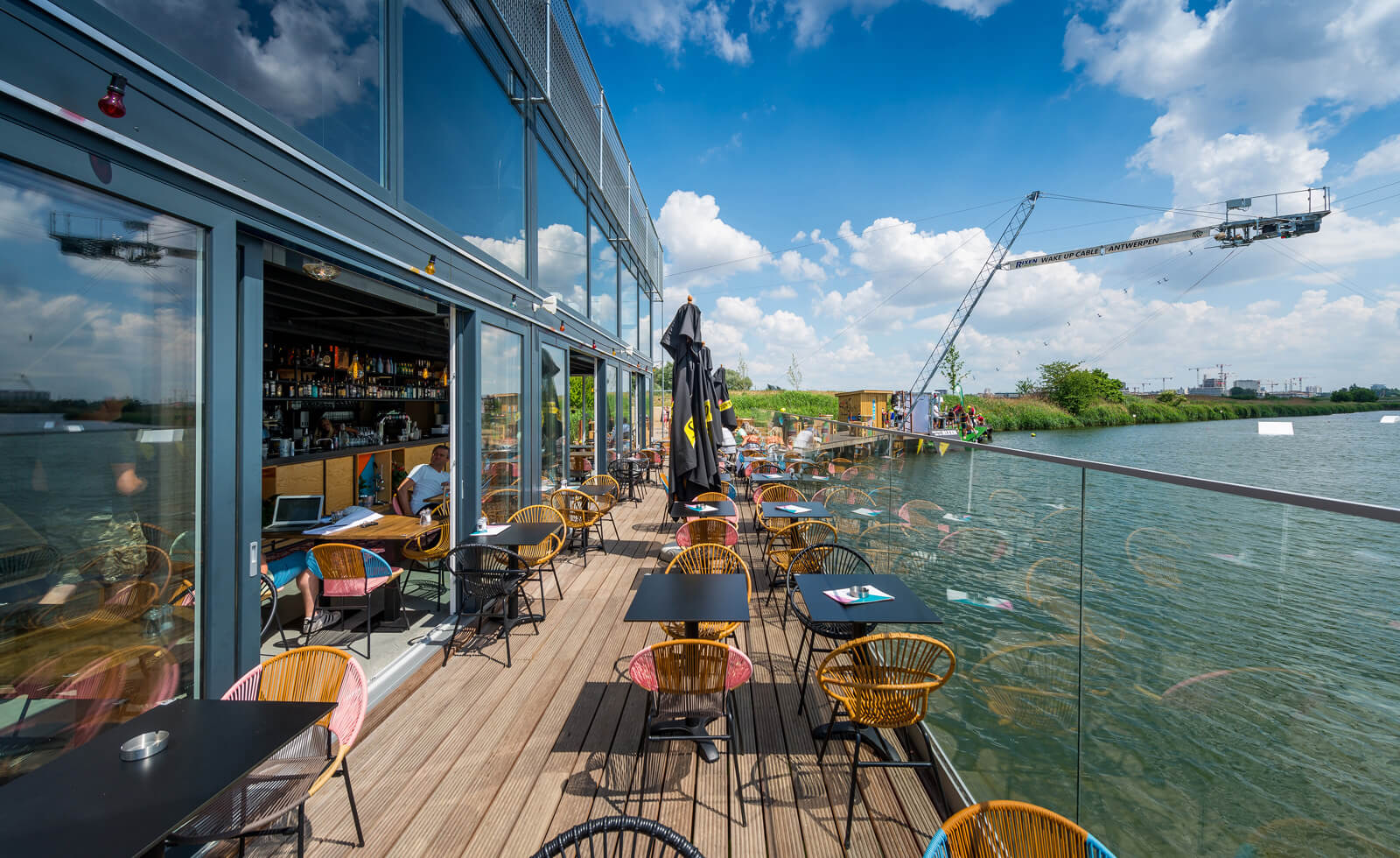

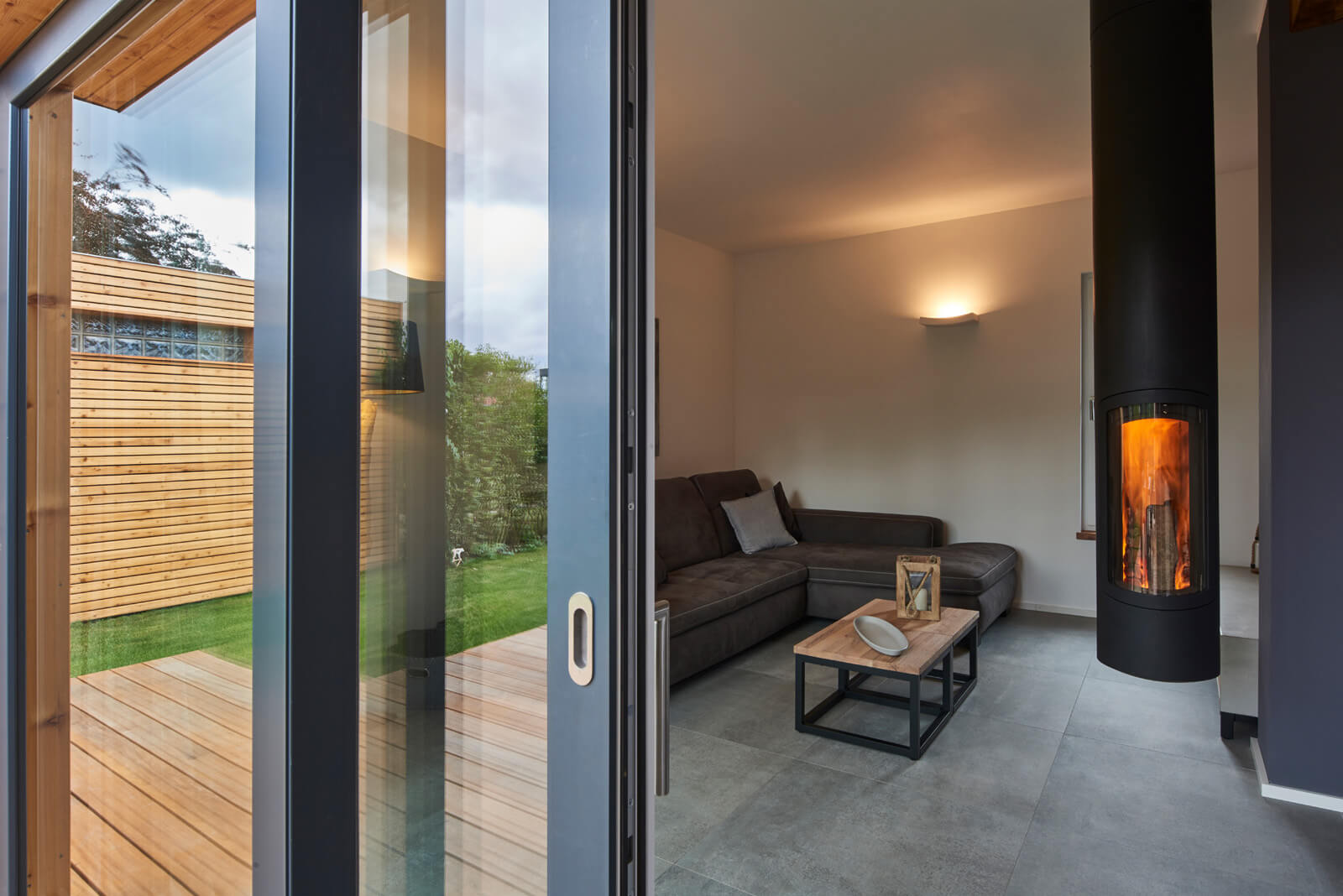

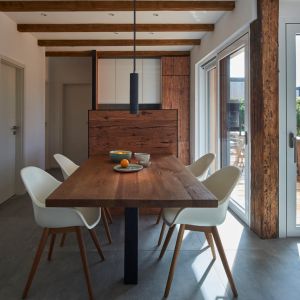

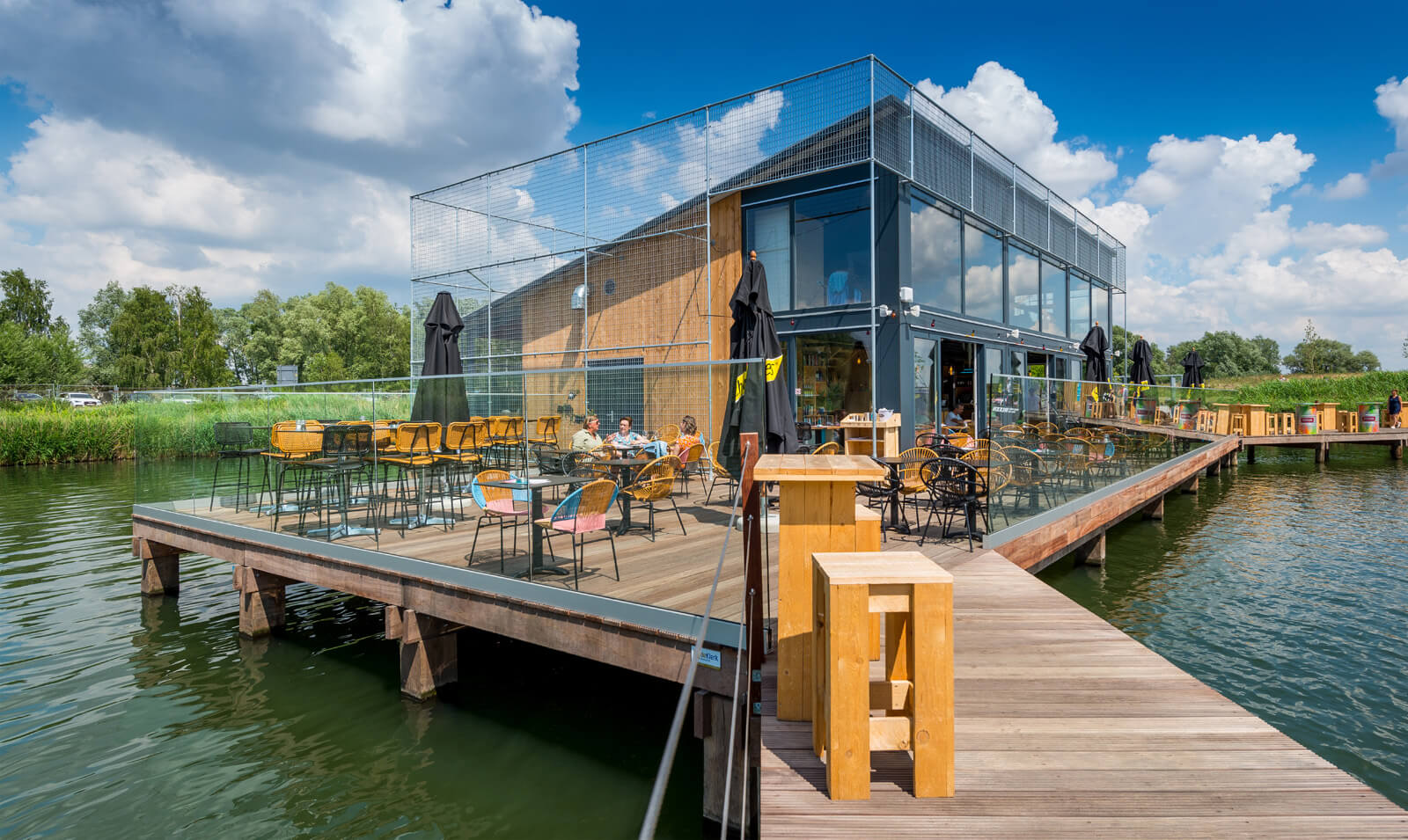

Examples of investments

aSLIDE
aSLIDE
aSLIDE
aSLIDE
aSLIDE
aSLIDE
aSLIDE
